WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface

private mold : NO

products status : Stock

type : Barcode Scanner

scan element type : CMOS

colour depth : 32 Bit

interface type : usb, TTL-232

max paper size : A4

optical resolution : 4mil

scan speed : 200

Brand Name : WCMI

Place of Origin : Tianjin, China

warranty(year) : 2-Year

after-sales service : Return and Replacement, Repair, Free spare parts, Onsite Training and Inspection, Call Center and on-line Technical Support

software development kit (sdk) : NO

color : Black

Product name : Barcode Scanner Engine

Interface : TTL-232 / USB 2.0 Full Speed

Application : ALL 1D 2D barcode

Feature : Scanning fast and exactly

Light source : White LED,Red LED

Scan Angle : Rotation360°, Pitch± 60°, Deflection±60°

Scan Mode : Continuous mode, Induction mode, Manual mode, Command-Triggered Mode

Weight : 1.7g

Dimension : 22mm x 13.2mm x 8mm

Sensor : CMOS 640*480

Contact Now

Product Description

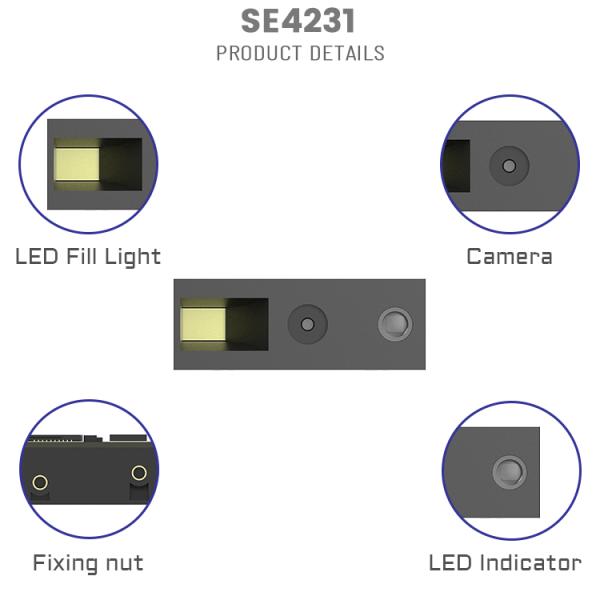

The SE4231 scan engine offers consistent performance to operations facing a wide range of barcodes. A combination of mini-size construction and longer reading distance make the SE4231 an ideal choice for portable scanning devices. It scans reliably no matter the material, size or type of barcode. From small on-screen QR codes to long, printed 1D barcodes at a short distance, the SE4231 is fast and effective. Consistent allround scanning from paper, plastic and smartphones.
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
Specification
Product parameters







General
Type
Barcode Scanner Engine
Product model
SE4230
Brand Name
WCMI
Product Specification
Mini Barcode Scanner Engine
Products Status
Stock
Place of Origin
Tianjin,China
Private Model
Yes
Warranty(Year)
2-year
After-sales Service
Return and Replacement; Free spare parts
Certification
RoHS FCC CE
Color
black
Language Supported
English/Customized
Scan Element Type
CMOS









Scan code performance
Image (Pixels) Sensor
640 X 480 CMOS @ 30fps
Light Source
Fill Light: White 6500K LED / Aiming Light: Red LED
View Angle
Horizontal 32°, Vertical 24°




Decoding capability
2D: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417
1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、
Code128、Code39、Code93、CodaBar、Interleaved 2
of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI- Plessey、Standard 2 of 5、Plessey、China Post、Code
16K、GS1 Databar(RSS-Expand, RSS-Limited, RSS-14)

Depth of Field
Code39: 45~120mm （5mil）
EAN13: 45~300 mm （13mil）
CODE128: 50~390 mm （15mil）
QR: 30-230mm(15mil)
Scan Angle
Rotation360°, Pitch± 60°, Deflection±60°
Scan Mode
Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
Precisions
1D≥4mil / 2D ≥10mil
Symbol Contrast
≥15%


Physical Parameters
Weight
<5g
Dimensions
22mm x 13.2mm x 8mm
Interface
TTL-232 / USB 2.0 Full Speed
Prompt Mode
LED prompt and buzzer (external connection available)
Voltage
+3.3VDC±5%
Current
working: 170mA; Sleeping: 800uA
Environmental Parameter
Operating temperature
-20℃ ~ 60℃
Storage temperature
-40℃ ~ 70℃
Operating Humidity
5%RH~95%RH (Non-condensing)
Company Information
Tianjin Wavecreating Microelectronics Limited Company is one of the leading professional R&D manufacturers for barcode scanning products in China. It is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insists on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency.
The company has more than 60 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors. Currently, it has obtained 7 invention patents, 4 utility model patents and 10 appearance patents
The company has passed I S O 9 0 0 1 and I S O 1 4 0 0 1 certifications, all of the products can meet RoSH, REACH, CE, and FCC certification requirements. It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service. The company's main products: wired and wireless barcode scanner, omni-directional barcode scanner, desktop barcode scanner, access control products, wearable barcode scanning products, scanner engine, algorithm licenses,etc. It can provide you with related solutions and services from chips to finished products，improve the efficiency and quality of processes in retail, manufacturing, transportation and logistics, site security, healthcare and service industries.
We sincerely look forward to win-win cooperation with you!
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
QUALIFIED FACTORY
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
Product packaging
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
Certification
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
FAQ
\uD83C\uDD9A Is OEM or ODM available?
Yes. We are the factory directly. We can make it as your requirement.
\uD83C\uDD9A What’s the warranty policy for the barcode scanners?
We provide 2 year maintenance warranties. During warranty, free spare parts if necessary for replacement or new barcode scanners replacement in next order.
\uD83C\uDD9AWhy so competitive?
We have a professional R & D team and technical team and have a large domestic market. What's more, we have mature technology to save costs.
\uD83C\uDD9AHow to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
\uD83C\uDD9AHow about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by government. Many technical and design patents in different professional fields approved.
